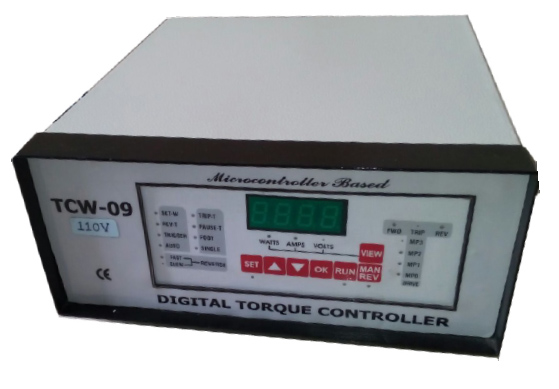

Wattage based Electric Tube Expansion Machine


Wattage

Send enquiry for Boiler Tube Expander


» Fully Solid State Design - no moving parts - no wear and tear - no noise - consequently long life.

» Uses the latest micro-controller chip for control functions.

» Uses one main circuit board for easy maintenance.

» Accurately calibrated digital torque setting with a resolution of 1 watt makes torque settings accurate and can be
   easily reproduced for identical results.

» Connected drive is automatically recognized & indicated by means of LED on the torque controller.

» Soft start has been provided for all drives, which reduces starting currents in the drive. As a result, life of carbon brushes
   & drive increases.

» Torque setting arranged in four different ranges to suit four different drives. Appropriate wattage range is
   automatically selected for the connected drive, hence drives can not be abused or overused.

» Actual drive wattage (torque) is displayed. Set wattage (torque), drive current and line voltage can be seen be
   Press of a button.

» Adjustable reverse time from (1 sec to 100 secs.)

» Trip time adjustable from (0.1 sec to 10 secs.)

» Pause time (time interval between cycles) adjustable from ( 1 sec to 100 secs.)

» Manual reverse by push button, in case of emergency.

» Drive Speed adjustable in reverse rotation.

» Hand (trigger) mode or foot switch mode, both are available.

» Expansions can be carried out either in single cycle mode or auto repeat mode.

» MCB has been provided to protect the drives against over current by short circuits..

» Plug in type PCBs reduce down time to minimum during trouble shooting.

» LED indicators provided for forward, reverse & trip conditions of drive.

» Superior SCR technology has been incorporated ratherthan trics. SCRS have much better voltage, current dv/dt ratings
   than triacs. This leads to greater reliability & the power circuit becomes almost failsafe.

» All the spares inside the panel viz : PCBs, Transformers, CT, Relays DPM etc. Can be replaced by use of only a screw driver.

» PC/Printer compatible.




Model No.

Voltage Single Phase 50/60 Hz Weight (kg)
TCW-09-110 100 V

11.0

TCW-09-230 230 V 11.0



Note : Voltage Stabilizers for use with TCW torque controllers. All TCW torque controllers are supplied with operation manuals.

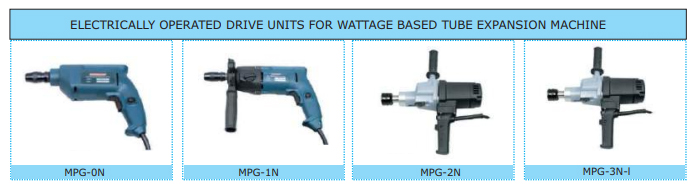

ELECTRICALLY OPERATED DRIVE UNITS FOR CURRENT BASED TUBE EXPANSION MACHINE

Wattage based Electric Tube Expansion Machine
FEATURES :

1. It consists of heavy duty German Made motors.
2. Continuous cycle operation vs. Intermittent cycle operation of drives from other manufactures.
3. High torque to weight ratio.


Drive Model No Load Speed
R.P.M.
Expansion Range Full Load Current AMPS Drive Weight
Kgs.
230V 110V S.Steel Tube
O.D/M.M
Copper Tube
O.D/M.M
230V 110V
MPG-0N MPG-0L 2800 6 to 10 6 to 12 2.6 2.6 2.0
MPG-1N-l MPG-1L-l 1000 10 to 16 13 to 20 6.0 6.0 2.5
MPG-1N-ll MPG-1L-ll 1900 08 to 13 11 to 16
MPG-2N-l MPG-2L-l 480 16 to 45 16 to 50 12.0 12.0 7.5
MPG-2N-ll MPG-2L-l 1080 16 to 32 16 to 38
MPG-3N-l MPG-3L-l 130 25 to 76 25 to 102 12.0 12.0 8.5
MPG-3N-ll MPG-3L-ll 430 25 to 50 25 to 76
