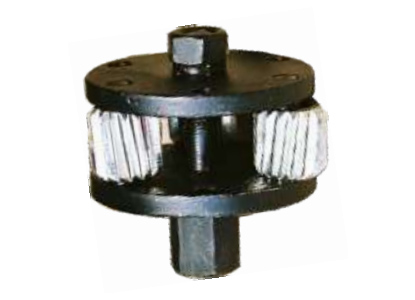

'T' Series Tool Head Cutter

'T' Series Tool Head Cutter


'T' Series Tool Head Cutters are the 2nd most efficient tool head use for removal of hard scale in boilers , juice heater, pan tubes in Sugar Mills or Sugar Factory. All T type tool heads are also known as LT & BT tool heads or H type tool heads.


T

Send enquiry for Boiler Tube Expander


Purpose : For cleaning straight and curved tubes as found in boiler, air heaters.

Description : This head cutter is provided with three wheels, one each of straight teeth, teeth cut right hand, teeth cut left hand for quicker cleaning and to prevent grooving of scale.

Size : Tube I. D. From 31mm to 102mm



Serial No.
Tube I.D.
Mm.
Inch
Tool Head
Model Nos.
Cutters Wheel
Model Nos.
Spare Arms
Model Nos.
1
31.7
1.1/4
T-10
TW-1
TA-1
2
35.0
1.3/8
T-11
TW-1
TA-1
3
38.1
1.1/2
T-12
TW-1
TA-1
4
41.3
1.5/8
T-13
TW-2
TA-2
5
44.5
1.3/4
T-14
TW-2
TA-2
6
47.6
1.7/8
T-15
TW-2
TA-2
7
51.4
2
T-16
TW-2
TA-2
8
54.0
2.1/8
T-17
TW-2
TA-2
9
57.1
2.1/4
T-18
TW-3
TA-3
10
63.5
2.1/2
T-20
TW-3
TA-3
11
70.0
2.3/4
T-22
TW-4
TA-4
12
76.2
3
T-24
TW-4
TA-4
13
82.5
3.1/4
T-26
TW-5
TA-5
14
88.9
3.1/2
T-28
TW-5
TA-5
15
95.2
3.3/4
T-30
TW-6
TA-6
16
101.6
4
T-32
TW-6
TA-6



NOTE : '2 Layer & 3 Layer tool head cutters also available in 'T' series cutters.
