Pneumatic Tube Cleaners

Pneumatic Tube Cleaners


Pneumatic

Send enquiry for Boiler Tube Expander


Features :
» Shock Resistant - Excellent for applications where use of electric equipment is hazardous.
» Versatile - Interchangeability of different size flexible shafts and tube cleaning tools.
» Speed/Torque control - Shaft rotation speed can be set at optimum for each application.
» No Tooling - Quick disconnection of flexible shaft.
» Time Saving - Simultaneous water flush to remove deposits from tubes.
» Cleanliness - Foot switch for operator's convenience to activate both shaft rotation and water flow to reduce water consumption and make the working area clean.
» Compact - Lightweight, easy to operate inside drum.



NOTE : As per the customer requirement, we can provide the machine with Stainless Steel Cover & Chasis.

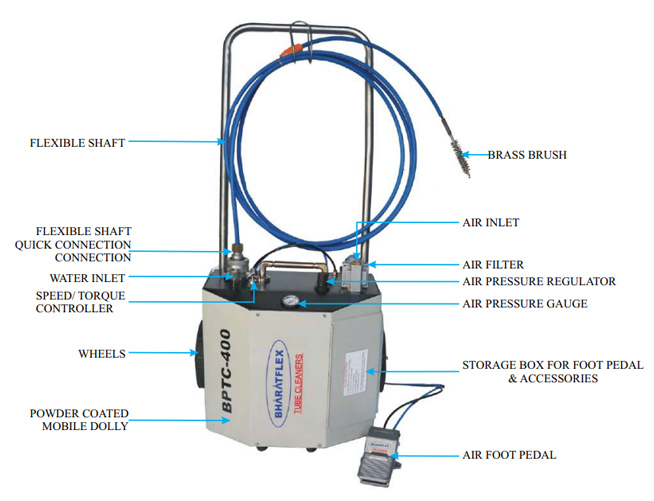

BHARTIYA Model BPTC- 400 Extra Heavy Duty Pneumatic Tube Cleaners Machine includes lubricator, regulator, air filter, adjustable speed/torque control, mobile dolly, air foot pedal and tool storage box.



The BPTC- 400 uses a cleaning tool mounted to the tip of a flexible shaft, which is available in different lengths and diameters to fit the size of the tube to be cleaned. For wet applications as the shaft rotes inside ats watertight nylon casing, the unit feeds water through the casing to the cleaning tool. A foot pedal controls shafi rotation and flow. While the operator feeds the rotating shaft assembly through the tube, the water flushes out deposits as they are loosened.


Tube I.D Tube Cleaner Model
No.
Motor Power Motor Speed Air Supply Weight Dimension
MM INCH HP KW RPM Min Max LBS. KG. HIGH WIDE DEEP
6.4 & UP 1/4 & UP BPTC-150 1.5 1 0-3000 60 psi @ 15cfm 90psi @70cfm 33 15 10.3/8"
(264mm)
6"
(150mm)
19"
(483mm)
