Flexible Shafts (BFS Series)

Flexible Shafts (BFS Series)


Tube Cleaning Flexible Shafts are used along with flexible shaft machine, brushes & other tools to remove soft or hard scale in boiler, juice heater, pan, chiller, condensers in Sugar Mills, Ice Factories, Oil Refineries & HVAC industries.


Flexible Shafts

Send enquiry for Boiler Tube Expander

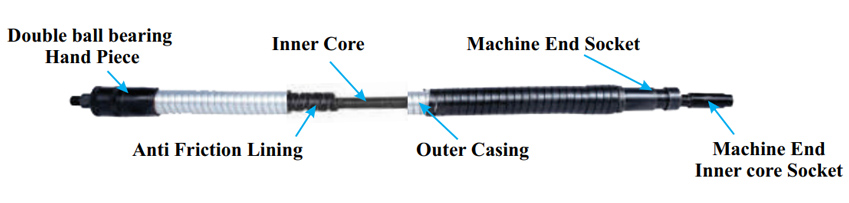

It is used for cleaning of tube by transmitting power in terms of rotation from the motor unit to tool head cutter or brush within tube.

INNER CORE : It is flexible wire with multiple wound opposite layer. It is made of high tensile spring steel or stainless steel (as per requirement) and passed through heat treatment processes to make it absolutely vibration free.

Outer Casing: It is flexible, double interlocked, circular rounded, made of galvanized steel strip, Special spring steel lining is provided within outer casing to avoid any friction between inner core & outer casing.

Connection : One end of shaft with machine end socket is attached to suitable motor and other end is attached to tool end.

For Domestic or Indian Flexible Shafts, Sizes are as follows :
1. Model: BFS-105:: Inner core: 12.5mm Outer casing: 26.5mm
2. Model BFS-106:: Inner core: 15mm Outer Casing: 33mm
3. Model: BFS-107: Inner Core: 18.5mm Outer Casing: 35.5mm

INNER CORE DIA
MM (INCH)
11.0 MM
(7/16")
Half Inch
13MM
15MM
(5/8")
19.0 MM
(3/4")
OUTER CASING
MM (INCH)
22.0 MM
(7/8")
24.0 MM
(15/16"
29.0 MM
(1.14")
33.0 MM
(1.3")
LENGTH
Mtrs.
Feet
Sr. No.
MODEL NO.
MODEL NO.
MODEL NO.
MODEL NO.
6.0
20.0
1
BFS-104-20
BFS-105-20
BFS-106-20
BFS-107-20
7.5
25.0
2
BFS-104-25
BFS-105-25
BFS-106-25
BFS-107-25
8.0
27.0
3
BFS-104-27
BFS-105-27
BFS-106-27
BFS-107-27
9.0
30.0
4
BFS-104-30
BFS-105-30
BFS-106-30
BFS-107-30
10.0
33.0
5
BFS-104-33
BFS-105-33
BFS-106-33
BFS-107-33
12.0
40.0
6
BFS-104-40
BFS-105-40
BFS-106-40
BFS-107-40
15.0
50.0
7
BFS-104-50
BFS-105-50
BFS-106-50
BFS-107-50
18.0
60.0
8
BFS-104-60
BFS-105-60
BFS-106-60
BFS-107-60
20.0
65.0
9
BFS-104-65
BFS-105-65
BFS-106-65
BFS-107-65
25.0
82.5
10
BFS-104-82
BFS-105-82
BFS-106-82
BFS-107-82
30.0
100.0
11
BFS-104-100
BFS-105-100
BFS-106-100
BFS-107-100
Spare Inner Core Per Meter
BIC-104
BIC-105
BIC-106
BIC-107
Spare Outer Casing Per Meter
BOC-104
BOC-105
BOC-106
BOC-107
Spare Hand Piece
BHP-104
BHP-105
BHP-106
BHP-107



Note :
Tolerance for inner cores Are ± 0.5mm
Tolerance for outer casing Are ± 1mm
