Portable Pneumatic Tube Cleaners

Portable Pneumatic Tube Cleaners


Tube Cleaners

Send enquiry for Boiler Tube Expander


Features :
» Shock Resistant - Excellent for applications where using electric equipment is hazardous.
» Versatile - Interchangeability of different size Flexible Shafts for Wet Cleaning (Nylon Casing) and cleaning tools.
» Speed/Torque control - Shaft rotation speed can be set at optimum for each application.
» No Tooling - Quick disconnection for flexible shaft.
» Time Saving - Simultaneous water flush to remove deposits from tubes.
» Cleanliness - Foot pedal for operator™s convenience to activate both shaft rotation and water flow to reduced
   water consumption and making working area clean.
» Compact - Light weight easy to operate inside drum.

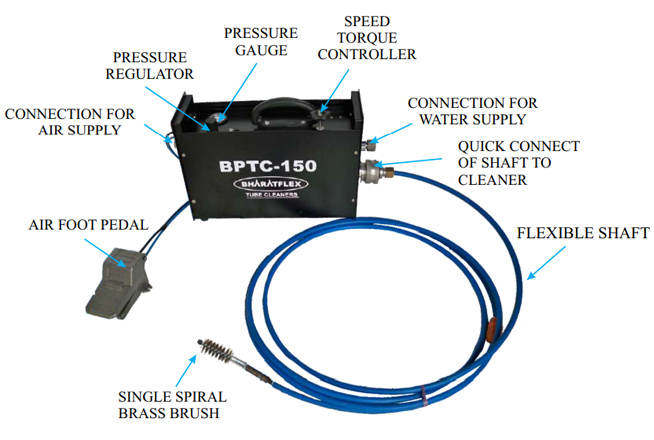

Model-BPTC-150 Portable Pneumatic Tube Cleaning Machine includes FRL unit, adjustable speed/torque control, and air foot pedal. The BPTC-150 uses a cleaning tool mounted on the tip of a flexible shaft, which is available in different lengths and diameters to fit the size of the tube to be cleaned. For wet applications, as the shaft rotates inside its watertight nylon casing, the unit feeds water through the casing to the cleaning tool.

A foot switch controls shaft rotation and water flow. While the operator feeds the rotating shaft assembly through the tube, the waterflow softens the deposits before cleaning and flushes them out during cleaning.


Tube I.D
Tube Cleaner Model No.
Motor Power
Motor Speed RPM
Air Supply Weight Dimension
Mm Inch HP KW Min Max Lbs. Kg. High Wide Deep
6.4 & UP 1/4 & UP BPTC-150 1.5 1 0-3000 60 psi @ 15cfm 100 psi @ 70cfm 33 15 10.3/8" (264mm) 6" (150mm) 19"(483mm)
