Plate Beveling Machine PBM-15

 Home / Products / Plate Beveling Machine

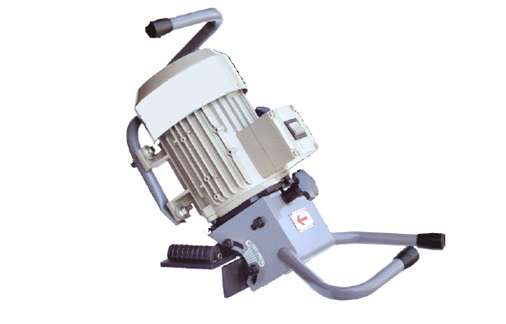

PBM-15 Plate Beveling Machine


Plate

Send enquiry for Boiler Tube Expander


This machine is a handy and flexible unit for the preparation of welding beveling deburring of the material. It has low weight (Compared with our other similar machines) which enables it to be used at almost every work place and a rattling-free, steady, milling operation. The handling and operation is easy and safe. The machine is suitable for milling steel,VA, Cast Iron, non-ferrous heavy metal with one hand operation.

Smooth and flat beveling face, layer of oxide, facilitate for welding. It meet the need K, V, X & Y types of welding joint

TECHNICAL PARAMETERS :

Land Width : 15mm Max. Progressively adjustable.

Bevel Angle : 30- 60 degree progressively adjustable

Weight : 18 Kg.

Motor : 3 Phase, 400/440 Volts, 1.1KW, 2800 RPM, 50-60 Hz

Model : PB M-15
