Torque Capacity up to 48327 Nm
Torque Accuracy of +/- 3 %
Working Pressure 700 bar
» Lightweight
» Output torque capacities from 232 to 44593 Nm
» Low profile design for direct in-line reaction
» Narrow cassette head design makes it ideal for limited access applications
» Ratchet head can be easily changed by simply withdrawing/inserting a single pin
» Imperial ratchet heads available with across flat (AF sizes) sizes from 1 1/16" to 6 7/8"
» Metric ratchet heads available with across flat (AF sizes) sizes from 24 to 175 mm
» Fitted with 360 o x 180o swivel with quick release couplings for easy positioning of hydraulic hoses

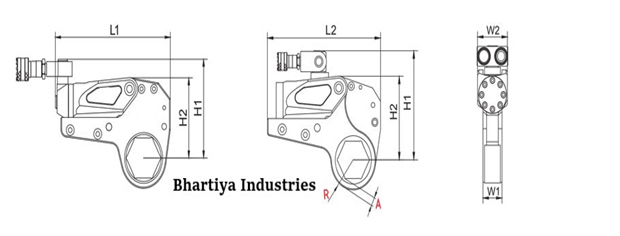

Dimension / |
L |
Hl |
H2 |
Wl |
Wl |
BXD 2 |
196.4 |
125.9 |
102.3 |
32 |
51 |
BXD 4 |
245 |
177 |
135.7 |
42 |
66 |
BXD 8 |
300 |
207 |
169 |
53 |
83 |
BXD 14 |
361 |
239 |
204 |
64 |
99 |
BXD 32 |
430 |
303 |
272 |
85 |
131 |
BXD-2 |
BXD-4 |
BXD-8 |
BXD-14 |
BXD-32 |
|||||||||||||||
Type |
R |
A |
Max Torque |
Type |
R |
A |
Max Torque |
Type |
R |
A |
Max Torque |
Type |
R |
A |
Max Torque |
Type |
R |
A |
Max Torque |
BXD2-19 |
27 |
16 |
2328 |
BXD4-34 |
36 |
16 |
2510 |
BXD8-41 |
46 |
22 |
10941 |
BXD14-50 |
60 |
31 |
18521 |
BXD32-85 |
78 |
28 |
41882 |
BXD2-22 |
27 |
14 |
2328 |
BXD4-36 |
36 |
15 |
2510 |
BXD8-46 |
46 |
19 |
10941 |
BXD14-55 |
60 |
28 |
18521 |
BXD32-90 |
78 |
28 |
41882 |
BXD2-27 |
27 |
11 |
2328 |
BXD4-41 |
39 |
15 |
5021 |
BXD8-50 |
46 |
17 |
10941 |
BXD14-60 |
60 |
25 |
18521 |
BXD32-95 |
83 |
28 |
41882 |
BXD2-30 |
29 |
12 |
2328 |
BXD4-46 |
42 |
15 |
5858 |
BXD8-55 |
50 |
18 |
10941 |
BXD14-65 |
60 |
22 |
18521 |
BXD32-100 |
83 |
25 |
41882 |
BXD2-32 |
29 |
11 |
2328 |
BXD4-50 |
44 |
15 |
5858 |
BXD8-60 |
52 |
17 |
10941 |
BXD14-70 |
60 |
19 |
18521 |
BXD32-105 |
89 |
28 |
41882 |
BXD2-34 |
31 |
11 |
2328 |
BXD4-55 |
46 |
14 |
5858 |
BXD8-65 |
55 |
17 |
10941 |
BXD14-7 |
63 |
19 |
18521 |
BXD32-110 |
89 |
25 |
41882 |
BXD2-36 |
31 |
10 |
2328 |
BXD4-60 |
50 |
15 |
5858 |
BXD8-70 |
58 |
17 |
10941 |
BXD14-80 |
66 |
19 |
18521 |
BXD32-115 |
95 |
28 |
41882 |
BXD2-41 |
34 |
10 |
2328 |
BXD4-65 |
53 |
15 |
5858 |
BXD8-75 |
60 |
17 |
10941 |
BXD14-85 |
69 |
19 |
18521 |
BXD32-117 |
95 |
27 |
41882 |
BXD2-46 |
37 |
10 |
2328 |
BXD4-70 |
56 |
15 |
6474 |
BXD8-80 |
63 |
16 |
10941 |
BXD14-90 |
72 |
20 |
18521 |
BXD32-120 |
95 |
25 |
41882 |
BXD2-50 |
40 |
11 |
2328 |
BXD4-75 |
59 |
15 |
6474 |
BXD8-85 |
66 |
16 |
10941 |
BXD14-95 |
74 |
19 |
18521 |
BXD32-125 |
101 |
29 |
41882 |
BXD2-55 |
43 |
11 |
2328 |
BXD4-80 |
61 |
15 |
6474- |
BXD8-90 |
69 |
17 |
10941 |
BXD14-100 |
77 |
19 |
18521 |
BXD32-130 |
101 |
26 |
41882 |
BDX2-60 |
46 |
11 |
2414 |
- |
- |
- |
- |
BXD8-95 |
71 |
16 |
10941 |
BXD14-105 |
80 |
19 |
18521 |
BXD32-135 |
104 |
26 |
41882 |
- |
- |
- |
- |
- |
- |
- |
- |
BXD8-100 |
75 |
17 |
11774 |
BXD14-110 |
83 |
19 |
18521 |
BXD32-140 |
110 |
29 |
41882 |
- |
- |
- |
- |
- |
- |
- |
- |
BXD8-105 |
78 |
17 |
11774 |
BXD14-115 |
87 |
20 |
18521 |
BXD32-145 |
110 |
26 |
41882 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
BXD14-117 |
87 |
19 |
18521 |
BXD32-150 |
116 |
29 |
41882 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
BXD32-155 |
116 |
26 |
41882 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
BXD32-160 |
128 |
36 |
44593 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
BXD32-165 |
128 |
33 |
44593 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
BXD32-170 |
128 |
30 |
44593 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
BXD32-175 |
128 |
27 |
44593 |
