Portable Choked Tube Cleaners

Portable Choked Tube Cleaners


Pneumatic Tube Cleaners

Send enquiry for Boiler Tube Expander

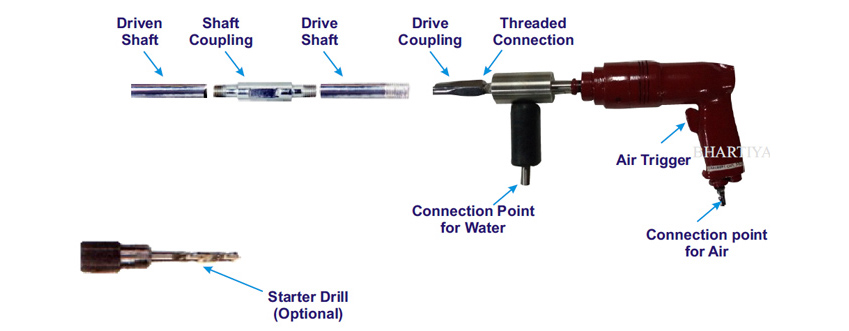

» Pneumatic Tube Cleaners used hollow air craft quality shaft of different diameters per tube I.D. to be
   cleaned which can be coupled together to form length of the tube to be cleaned.

» Water flows through the hollow tube & flushes out deposits that are loosened by the cleaning tools attached to
   hollow shaft. Tools used for cleaning are carbide drills, for severly clogged tubes, brushes for light deposits &
   buffing tools for final polishing. The rotation of air motor & the water flow are controlled independently.



Model No.. Motor Power Tube ID Speed RPM Air Supply Water Supply Weight
Hp kW Inch mm Min. Max. Min. Max. Ibs. kg.
BC-20 0.6 0.45 3/16-1 4.8-25.4 700 60psi@16cfm 90psi@16cfm 30psi 100psi 5.72 2.6
BC-750 1.2 0.90 7/8-2 22.2-51.0 1000 90psi@20cfm 90psi@40cfm 30psi 100psi 6.60 4.0



» Model BC-20 is generally used for oil coolers, small heat exchanger and condenser.
» Model BC-750 is generally used for large diameter tubes of process equipment condensers and heat exchangers.



Cleaning Tools for Pneumatic Tube Cleaners

Carbide Drills
Carbide Drills
Nylon Brushes
Nylon Brushes
Brass Brushes
Brass Brushes
Stainless Steel Brushes
Stainless Steel Brushes
Buffing Tools
Buffing Tools
