Sizes Available : 5/8” O.D. to 1.1/2” O.D.
Tube Internal diameter : 12.9mm (0.509”) to 36.7mm (1.44”)
Roller Length of Tube Expander : 1.1/2” (38.1mm) & 2.1/4” (57.1mm)

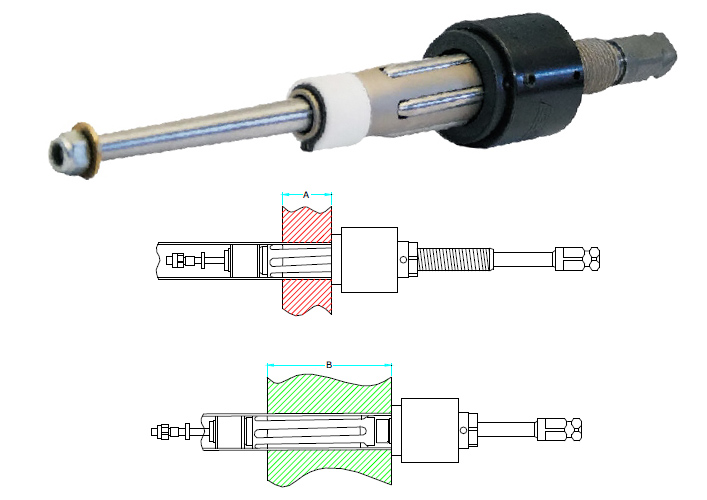

Five Roller For Thin Wall :
» Use: This is recommended for use on thin walled tubes (19 thru 22 gauge walls) of stainless steel, Titanium, &
other exotic materials in thick tube sheets.
» Advantages: It gives a more concentric and even expansion when expanding thin walled tubes vs conventional 3
roller tube expander and reduces tube spring back effect.
