Application :
It is mainly used in Petroleum, Natural Gas, Chemicals, Boiler & Nuclear Plant.
Performance :
Automatic feed mechanism, no manual-adjustment, high efficiency, high quality. Steel Machine body is toroidal cavity construction, can be divided two parts, installed at any space on the pipeline quickly & safely.
This machine can be used for cutting & beveling process of different types & sizes of pipes, pressure vessels & steam generator, safely & quickly. Machine will be of Auto/Self Centering Type.
Working Range :
10mm to 450mm, Electrical machine is suitable for
220 V, 50 Hz, 12A, 1.2HP to 3 HP.

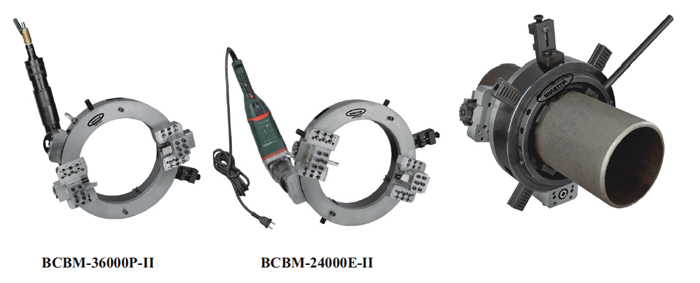

This series is portable out-mounted pipe cutting & beveling machines with the
following advantages :
● easys to operate,
● minimal radial space,
● lighter weight.
● self centering feature
It is available in electric or pneumatic version.
Technical Parameter
Electric Model |
Pneumatic Model |
Hydraulic Model |
Working Range | Max. Wall Thickness (MM) |
Rotating Rate (RPM) |
|
Inch | MM | |||||
BCBM-152-E | BCBM-152-P | BCBM-152-H | 2-6 | 50-152 | 25 | 15 |
BCBM-203-E | BCBM-203-P | BCBM-203-H | 2-8 | 50-203 | 25 | 15 |
BCBM-254-E | BCBM-254-P | BCBM-254-H | 4-10 | 101-254 | 25 | 15 |
BCBM-305-E | BCBM-305-P | BCBM-305-H | 6-12 | 152-305 | 25 | 15 |
BCBM-355-E | BCBM-355-P | BCBM-355-H | 8-14 | 203-355 | 25 | 14 |
BCBM-406-E | BCBM-406-P | BCBM-406-H | 10-16 | 254-406 | 25 | 13 |
BCBM-457-E | BCBM-457-P | BCBM-457-H | 12-18 | 305-457 | 25 | 13 |
BCBM-508-E | BCBM-508-P | BCBM-508-H | 14-20 | 355-508 | 25 | 13 |

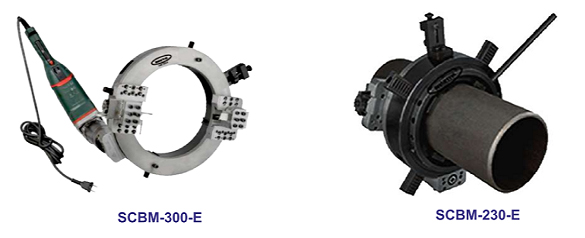

Techinical Parameter :
Electric Model |
Pneumatic Model |
Working Range |
Max. Wall Thickness (MM) | Rotating Rate (RPM) |
SCBM - 160 - E |
SCBM - 160 - P |
50 - 160 |
25 | 22 |
SCBM - 230 - E |
SCBM - 230 - P | 80 - 230 | 25 | 15 |
SCBM - 300 - E |
SCBM - 300 - P | 150 - 300 | 25 | 13 |
SCBM - 450 - E |
SCBM - 450 - P | 300 - 450 | 25 | 11 |
