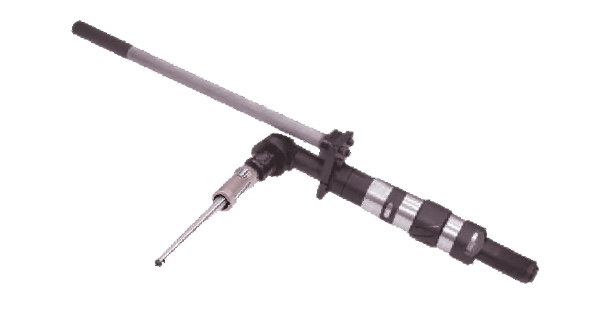

Right Angle Rolling Drive

Right Angle Rolling Drive


Right

Send enquiry for Boiler Tube Expander


Right Angle Rolling Drives are sprcially designed for expanding boiler tubes in mud drums, fire tubes, steam & other boiler accessories.



Features :
» 360 degree adjustable air exhaust.
» Easy adjustable torque.
» Angle head can be set up in numerous positions.
» Both models equipped with roll throttle as standard. level throttle optional.

» Unique Head design consisting of fully enclosed bearing for long & trouble free life.



Model No. Free Speed Rpm Tube Capacity Inch Min Torque Nm Max Torque Nm Air Consumption L/Min Weight Kg
B72-RT-190 190 2.5 95 200 5/8" 5.8
B72-RT-90 90 4 200 410 3/4" 6.7
