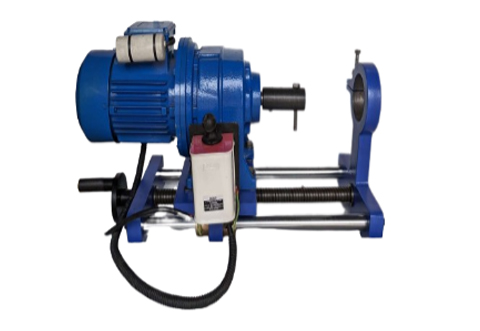

Manual Line Boring Machine IndoBore - 40


Manual

Send enquiry for Boiler Tube ExpanderTube Cleaner


OUR MACHINE ADVANTAGE COMPARED WITH SAME INDUSTRY :

» By adopting 230V Single Phase AC motor with characteristics of Low speed of revolution an high torque the machine can realize stable machining in superior performance
» No vibration in axial travel and cutting process.
» Feeding and processing is manual.
» Boring bar adopted high-strength alloy which with high hardness, high accuracy, high tenacity, good abrasion resistance, etc.
» Within the effective travel, the tool rest can be fixed at any position of boring bar.
» The boring bar can be disassembled separately to make installation convenient.
» Electric motor is mounted on the Stress reveal machine body to avoid vibration in boring operations.
» LightWeight Body Design Make Machine Easily to Handle.




PORTABLE MANUAL LINE BORING MACHINE SIMLBM-40 :

MODEL

SIZE

Boring Bar Diameter

40 mm
Length Of Boring Bar 1000 mm
Suggested 50 RPM When Using 50 RPM when using HSS Tool
Max Axial Travel 250mm
Motor Power 1 HP
Boring Diameter Φ45-Φ200mm
Voltage And Frequency 220V, 50hz, Single phase Or Three Phase 440V
