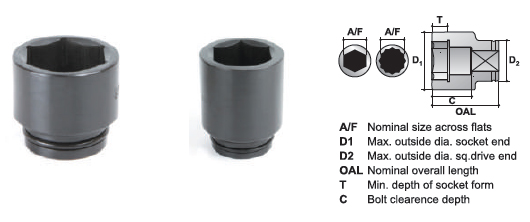

2 1/2" - Metric Deep Hexagon
A/F mm |
MODEL NO. |
D1 mm |
D2 mm |
T mm |
C mm |
OAL mm |
Wt. Kg. |
|---|---|---|---|---|---|---|---|
43 44 45 |
S-40M 43L S-40M 44L S-40M 45L |
86.0 86.0 86.0 |
106.0 106.0 106.0 |
26.0 26.0 26.0 |
110.0 110.0 110.0 |
168.0 168.0 168.0 |
6.43 6.36 6.29 |
46 47 48 |
S-40M 46L S-40M 47L S-40M 48L |
86.0 86.0 86.0 |
106.0 106.0 116.0 |
27.0 28.0 28.0 |
110.0 110.0 110.0 |
168.0 168.0 168.0 |
6.22 6.14 7.03 |
49 50 51 |
S-40M 49L S-40M 50L S-40M 51L |
86.0 86.0 90.0 |
116.0 116.0 116.0 |
28.0 29.0 29.0 |
110.0 110.0 110.0 |
168.0 168.0 168.0 |
6.95 6.86 7.24 |
52 54 55 |
S-40M 52L S-40M 54L S-40M 55L |
90.0 92.5 93.8 |
116.0 124.0 124.0 |
29.0 30.0 32.0 |
110.0 110.0 110.0 |
168.0 168.0 168.0 |
7.16 8.11 8.18 |
56 57 58 |
S-40M 56L S-40M 57L S-40M 58L |
95.0 96.3 97.5 |
124.0 124.0 124.0 |
32.0 32.0 32.0 |
117.0 117.0 117.0 |
175.0 175.0 175.0 |
8.51 8.58 8.65 |
59 60 62 |
S-40M 59L S-40M 60L S-40M 62L |
98.8 100.0 103.0 |
127.0 127.0 127.0 |
34.0 36.0 36.0 |
117.0 117.0 127.0 |
175.0 175.0 185.0 |
9.04 9.10 9.66 |
65 67 70 |
S-40M 65L S-40M 67L S-40M 70L |
106.0 109.0 113.0 |
127.0 127.0 127.0 |
38.0 38.0 40.0 |
127.0 127.0 127.0 |
185.0 185.0 185.0 |
9.90 10.13 10.37 |
73 75 76 |
S-40M 73L S-40M 75L S-40M 76L |
116.0 119.0 120.0 |
127.0 127.0 127.0 |
40.0 42.0 44.0 |
127.0 127.0 127.0 |
185.0 185.0 185.0 |
10.62 10.78 10.85 |
80 85 86 |
S-40M 80L S-40M 85L S-40M 86L |
125.0 129.0 132.0 |
127.0 127.0 127.0 |
44.0 48.0 50.0 |
127.0 137.0 134.0 |
185.0 195.0 195.0 |
11.20 12.42 13.03 |
90 95 100 |
S-40M 90L S-40M 95L S-40M 100L |
136.0 142.0 148.0 |
127.0 127.0 127.0 |
52.0 54.0 56.0 |
135.0 139.0 135.0 |
195.0 199.0 195.0 |
13.40 14.47 15.07 |
105 110 115 |
S-40M 105L S-40M 110L S-40M 115L |
154.0 161.0 165.0 |
127.0 127.0 127.0 |
60.0 64.0 67.0 |
145.0 149.0 150.0 |
205.0 209.0 210.0 |
16.33 17.67 17.72 |
120 125 130 |
S-40M 120L S-40M 125L S-40M 130L |
173.0 179.0 185.0 |
127.0 127.0 127.0 |
70.0 73.0 76.0 |
150.0 157.0 157.0 |
210.0 215.0 215.0 |
19.23 20.57 21.44 |
135 140 145 |
S-40M 135L S-40M 140L S-40M 145L |
192.0 196.0 204.0 |
152.0 152.0 152.0 |
79.0 82.0 85.0 |
162.0 167.0 172.0 |
220.0 225.0 230.0 |
25.67 26.22 28.82 |
150 155 160 |
S-40M 150L S-40M 155L S-40M 160L |
211.0 215.0 223.0 |
152.0 152.0 152.0 |
88.0 91.0 94.0 |
172.0 177.0 177.0 |
230.0 235.0 235.0 |
30.38 30.97 33.49 |
165 170 175 |
S-40M 165L S-40M 170L S-40M 175L |
229.0 235.0 242.0 |
175.0 175.0 175.0 |
96.0 98.0 100.0 |
182.0 182.0 182.0 |
240.0 240.0 240.0 |
37.53 39.22 40.86 |
180 185 190 |
S-40M 180L S-40M 185L S-40M 190L |
246.0 254.0 261.0 |
175.0 175.0 175.0 |
103.0 106.0 109.0 |
187.0 192.0 192.0 |
245.0 250.0 250.0 |
41.63 45.61 46.93 |
195 200 210 |
S-40M 195L S-40M 200L S-40M 210L |
265.0 273.0 285.0 |
175.0 175.0 175.0 |
112.0 115.0 120.0 |
199.0 202.0 202.0 |
257.0 260.0 260.0 |
48.28 51.89 54.71 |
215 225 |
S-40M 215L S-40M 225L |
292.0 304.0 |
175.0 175.0 |
123.0 130.0 |
212.0 220.0 |
270.0 270.0 |
59.42 62.42 |
