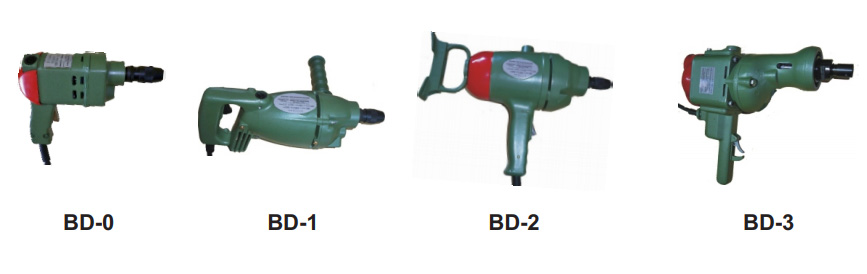

Rolling Drive for Electric Tube Expansion Machine
(Electrically operated Drive unit)
Features :
1. It consists of heavy duty motors.
2. Continuous cycle operation vs. Intermittent cycle operation of drives from other manufactures.
3. High torque to weight ratio.
4. Spare parts are easily available worldwide.
DRIVE MODEL |
NO LOAD SPEED R.P.M |
EXPANSION RANGE |
FULL LOAD CURRENT APMS |
FULL LOAD TORQUE KGM |
DRIVE WEIGHT KGS. |
|||
| 230V | 110V | S.STEEL TUBE O.D. M.M. |
COPPER TUBE O.D. M.M. |
230V | 110V | |||
BD-0 BD-1 |
BD-0L BD-1L |
700 550 |
6 to 12 10 to 16 |
8 to 16 13 to 22 |
1.3 2.6 |
2.6 6.8 |
0.36 0.46 |
2.8 4.1 |
BD-2 BD-2TS BD-3 |
BD-2L BD-2TSL BD-3L |
560 1380/560 270 |
16 to 28 16 to 28 25 to 45 |
19 to 34 19 to 34 38 to 65 |
2.7 2.75 6.0 |
8.0 5.5 12.0 |
1.26 2.2/3.0 3.0 |
7.7 5.4 11.3 |
BD-2M5 BD-3M5 |
BD-2LM5 BD-3LM5 |
112 56 |
25 to 50 25 to 57 |
38 to 70 38 to 100 |
4.0 6.0 |
8.0 12.0 |
3.8 12.0 |
10.0 16.0 |
| BD-2M25 BD-3M25 |
BD-2LM25 BD-3LM25 |
21 11 |
38 to 63 50 to 104 |
- | 4.0 6.0 |
8.0 12.0 |
31.5 48.0 |
15.0 19.0 |
| MPG-3N-I MPG-3N-II | MPG-3L-I MPG-3L-II |
130 430 |
25 to 76 25 to 50 |
25 to 102 25 to 76 |
12.0 12.0 |
12.0 12.0 |
- | 8.0 8.0 |
