Fractional Bihexagon

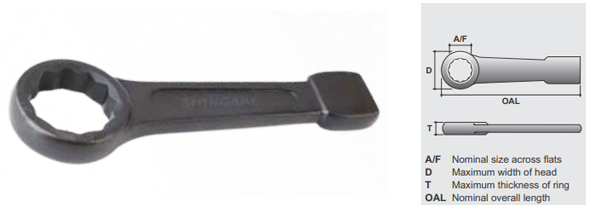

Metric Bihexagon

MODEL NO. A/F inch T mm D mm OAL mm Wt. lbs.
SASW12
SASW14
SASW15
SASW16
3/4”
7/8
15/16
1
0.708
0.708
0.708
0.708
1.889
1.889
1.889
1.889
7.165
7.165
7.165
7.165
1.390
1.390
1.340
1.320
SASW17
SASW18
SASW19
1.1/16
1.1/8
1.3/16
0.708
0.708
0.708
1.889
2.125
2.125
7.165
7.283
7.283
1.300
1.365
1.200
SASW20
SASW21
SASW22
1.1/4
1.5/16
1.3/8
0.708
0.708
0.708
2.125
2.125
2.125
7.283
7.283
7.283
1.500
1.200
1.200
SASW23
SASW24
SASW25
1.7/16
1.1/2
1.9/16
0.866
0.866
0.866
2.519
2.519
2.519
8.464
8.464
8.464
2.300
2.400
2.350
SASW26
SASW27
SASW28
1.5/8
1.11/16
1.3/4
0.866
0.984
0.984
2.519
2.992
2.992
8.464
9.370
9.370
2.300
3.080
3.080
SASW29
SASW30
SASW31
1.13/16
1.7/8
1.15/16
0.984
0.984
0.984
2.992
2.992
3.149
9.370
9.370
9.448
3.080
3.230
3.230
SASW32
SASW33
SASW34
2
2.1/16
2.1/8
0.984
0.984
0.984
3.149
3.149
3.149
9.448
9.448
9.448
3.080
2.930
3.020
SASW35
SASW36
SASW37
2.3/16
2.1/4
2.5/16
1.102
1.102
1.102
3.464
3.464
3.700
10.314
10.314
10.433
4.840
4.970
4.990
SASW38
SASW39
SASW40
2.3/8
2.7/16
2.1/2
1.102
1.102
1.102
3.700
3.700
3.700
10.433
10.433
10.433
5.040
4.700
3.080
SASW41
SASW42
SASW43
2.9/16
2.5/8
2.11/16
1.181
1.181
1.181
4.094
4.094
4.094
11.220
11.220
11.220
5.875
7.500
7.500
SASW44
SASW45
SASW46
2.3/4
2.13/16
2.7/8
1.377
1.377
1.377
4.330
4.330
4.330
12.401
12.401
12.401
7.500
7.180
7.195
SASW47
SASW48
SASW49
2.15/16
3
3.1/16
1.377
1.377
1.496
4.330
4.330
4.960
12.401
12.401
13.385
7.200
7.400
9.130
SASW50
SASW51
SASW52
3.1/8
3.3/16
3.1/4
1.496
1.496
1.496
4.960
4.960
4.960
13.385
13.385
13.385
8.910
9.130
9.350
SASW53
SASW54
SASW55
3.5/16
3.3/8
3.7/16
1.496
1.496
1.653
4.960
4.960
5.984
13.385
13.385
15.748
9.570
9.680
9.460
SASW56
SASW57
SASW58
3.1/2
3.9/16
3.5/8
1.653
1.653
1.653
5.984
5.984
5.984
15.748
15.748
15.748
9.460
9.500
9.480
SASW59
SASW60
SASW61
3.11/16
3.3/4
3.13/16
1.653
1.653
1.653
5.984
5.984
5.984
15.748
15.748
15.748
9.530
9.590
9.640


MODEL NO. A/F inch T mm D mm OAL mm Wt. lbs.
SASW62 3.7/8 1.653 5.984 15.748 15.000
SASW63 3.15/16 1.653 5.984 15.748 16.480
SASW64 4 1.653 5.984 15.748 19.470
SASW65 4.1/16 1.653 5.984 15.748 19.690
SASW66 4.1/8 1.968 6.771 16.141 23.280
SASW67 4.3/16 1.968 6.771 16.141 23.100
SASW68 4.1/4 1.968 6.771 16.141 22.800
SASW69 4.5/16 1.968 6.771 17.125 24.550
SASW70 4.3/8 1.968 6.771 17.125 24.200
SASW71 4.7/16 1.968 6.771 17.125 23.980
SASW72 4.1/2 1.968 6.771 17.125 23.670
SASW74 4.5/8 2.204 7.637 18.700 29.480
SASW76 4.3/4 2.204 7.637 18.700 29.700
SASW78 4.7/8 2.204 7.637 18.700 37.310
SASW80 5 2.204 8.070 19.881 36.850
SASW82 5.1/8 2.204 8.070 19.881 36.630
SASW83 5.3/16 2.204 8.070 19.881 36.520
SASW84 5.1/4 2.204 8.070 19.881 36.520
SASW86 5.3/8 2.559 9.055 22.244 43.560
SASW88 5.1/2 2.559 9.055 22.244 41.800
SASW90 5.5/8 2.559 9.055 22.244 41.580
SASW92 5.3/4 2.559 9.055 22.244 41.560
SASW94 5.7/8 2.559 9.055 22.244 40.810
SASW96 6 2.559 9.055 22.244 40.370
SASW98 6.1/8 2.559 9.055 22.244 39.820
SASW100 6.1/4 2.755 10.629 25.000 66.550
SASW102 6.3/8 2.755 10.629 25.000 66.000
SASW104 6.1/2 2.755 10.629 25.000 65.340
SASW106 6.5/8 2.755 10.629 25.000 65.120
SASW108 6.3/4 2.755 10.629 25.000 64.240
SASW110 6.7/8 2.755 10.629 25.000 63.470
SASW112 7 2.755 10.629 25.000 63.030
SASW114 7.1/8 2.952 11.614 26.771 78.760
SASW116 7.1/4 2.952 11.614 26.771 78.320
SASW118 7.3/8 2.952 11.614 26.771 78.100
SASW120 7.1/2 2.952 11.614 26.771 78.880
SASW122 7.5/8 2.952 11.614 26.771 77.660
SASW124 7.3/4 2.952 11.614 26.771 77.440
SASW125 7.13/16 2.952 11.614 26.771 76.780
SASW126 7.7/8 2.952 11.614 26.771 76.120
SASW128 8 2.952 11.614 26.771 76.560
SASW130 8.1/8 3.149 12.795 28.543 112.420
SASW132 8.1/4 3.149 12.795 28.543 111.540
SASW134 8.3/8 3.149 12.795 28.543 110.660
SASW136 8.1/2 3.149 12.795 28.543 110.220
SASW138 8.5/8 3.149 12.795 28.543 109.780
SASW142 8.7/8 3.149 12.795 28.543 109.340
SASW144 9 3.149 12.795 28.543 108.900
