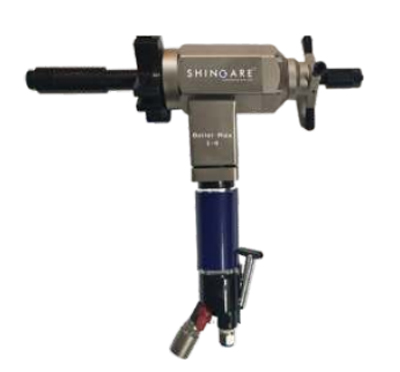

BOILERMAX 3 K Portable Pipe Beveling Machine
DESCRIPTION : The pipe beveling achine BOILERMAX 3 K is a pipe beveling machine able to lock pipes having internal
diameter between 28 and 76 mm (1"-3").
Credit to the light weight and its easy handling, the BOILERMAX 3 K is indicated for prefabrication, for jobs
on boilers and for maintenance in power station shut-downs.
RANGE : Pipe beveling machine for pipes 0,90"-4,25" Tube ID.
MATERIALS : Carbon steel, Stainless steel, Duplex, Inconel, others.
FUNCTIONS : Beveling, Facing, Counterboring.
| BOILERMAX 3 K | MODEL | |
| ELECTRIC | PNEUMATIC | |
| Loacking Range (ID) | 28mm to 76mm | 28mm to 76mm |
| Idle Speed (RPM) | 80 | 115 |
| Torque (Nm) | 80 | 55 |
| Feeding Stroke(mm) | 40 | 40 |
| Pneumatic Motor Power (HP) | - | 0.72 |
| Air Consumption (CFM) | - | 0.72 |
| Air Pressure (BAR/PSI) | - | 6 (90) |
| Air Hose Connection(BSP) | - | 1/2" |
| Electric Motor Mower(Watt) | 1000 | - |
| Voltage(Volt) | 220/110 | - |
| Frequency(Hz) | 50 | - |
| Max Noise Level (DB) | 75 | 75 |
| Weight(kg) | 9.8 | 8.5 |
Other Products : BOILERMAX 1-4 K
