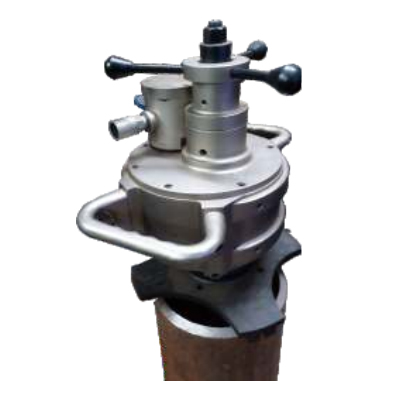

BEVELMAXI 4-16 Portable Pipe Beveling Machine



DESCRIPTION : Pipe Beveling Machine BEVELMAXI 4-16 is designed for piping industries and welding workshops for processing pipelines, boilers and fittings. The pipe beveling machine BEVELMAXI 4-16 is available in pneumatic & electric versions.


RANGE : Working range from 3,7" to 12" Tube ID (94,5-300 mm) in standard configuration and up to 16,45" (418 mm) with the optional extension kit.


MATERIALS : Carbon steel, Stainless steel,Suplex, Inconel, others.


FUNCTIONS : Milling processes, External and internal tapering, External and internal beveling of pipes.



BEVELMAXI 4-16 MODEL
ELECTRIC PNEUMATIC
Loacking Range (ID) 94.5mm to 300mm 94.5mm to 300mm
Working Range(ID) 101.6mm-323.85mm 101.6mm-323.85mm
Idle Speed (RPM) 30 35
Torque (Nm) 232 185
Feeding Stroke(mm) 50 50
Pneumatic Motor Power (HP) - 1.85
Air Consumption (CFM) - 65-70
Air Pressure (BAR/PSI) - 6(90)
Air Hose Connection (BSP) - 3/4"
Electric Motor Mower (Watt) 1100 -
Voltage(Volt) 220/110 -
Frequency(Hz) 50 -
Weight(kg) 80 80



With Optional kit: locking range up to 418mm (16.45") and working range up to 420mm (16.54")
