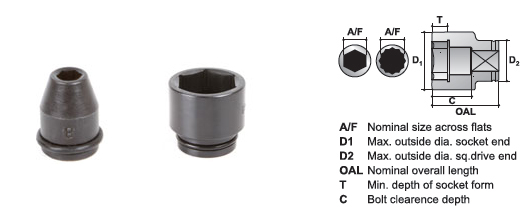

3 1/2" - Metric Deep Hexagon
A/F mm |
MODEL NO |
D1 mm |
D2 mm |
T mm> |
C mm |
OAL mm |
|---|---|---|---|---|---|---|
120 130 135 |
S-56M120L S-56M130L S-56M135L |
180.0 193.0 197.0 |
175.0 175.0 175.0 |
72.0 80.0 83.0 |
197.0 200.0 200.0 |
277.0 280.0 280.0 |
145 150 155 |
S-56M145L S-56M150L S-56M155L |
213.0 218.0 225.0 |
175.0 175.0 175.0 |
86.0 90.0 92.0 |
215.0 215.0 217.0 |
295.0 295.0 297.0 |
165 170 175 |
S-56M165L S-56M170L S-56M175L |
237.0 243.0 249.0 |
175.0 175.0 175.0 |
98.0 100.0 102.0 |
233.0 233.0 233.0 |
313.0 313.0 313.0 |
180 195 200 |
S-56M180L S-56M195L S-56M200L |
255.0 275.0 280.0 |
175.0 175.0 175.0 |
108.0 118.0 120.0 |
240.0 248.0 252.0 |
320.0 328.0 332.0 |
215 230 235 |
S-56M215L S-56M230L S-56M235L |
298.0 317.0 325.0 |
175.0 175.0 175.0 |
125.0 132.0 136.0 |
266.0 279.0 282.0 |
346.0 359.0 362.0 |
