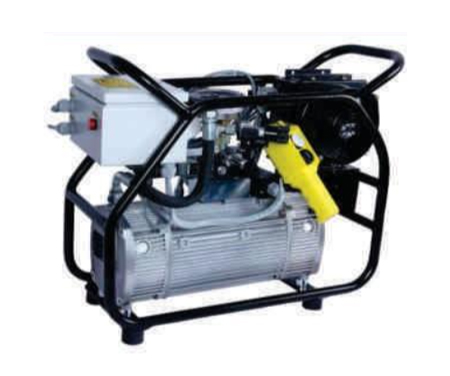

BHPE-Electric Driven Torque Wrench Pumps
Working Pressure 700 bar
High Flow 3-stage pump unit
Compact and Lightweight
» Low noise operation (<88 dB)
» Supplied fitted with one set of quick connect couplers
» Automatically activated oil cooling heat exchanger fitted as standard
» Adjustable torque setting pressure relief valve with locking nut
» Analogue or digital gauge options
» Remote hand pendant controller with 5 metres cable for easy operation
» Choice of manual operation with auto retract or fully automatic operation
» Multi-outlet 4-way split block for simultaneous operation of up to 4 torque wrenches
» Factory fitted roll bar protection and carrying frame
» Supplied with 5 mtr twin hoses and quick connect couplings suitable for BXD and BSD torque wrenches
Technical Data :
| TYPE | BHPE-1000 | BHPE-4000 |
| Working Pressure | 70 MPa | 70 MPa |
| Drive | Electric | Electric |
| Voltage | 220 V/50Hz | 220 V/50Hz |
| Power | 1.1 kW | 1.1 kW |
| Tank Capacity | 5.5L | 5.5L |
| Flow Rate | 7-1.6-0.8 L/min | 7-1.6-0.8 L/min |
| Oil Cooler | Yes | Yes |
| Weight | 25kg | 27kg |
| Oil Outputs | 4x1/4"NPT | 8x1/4"NPT |

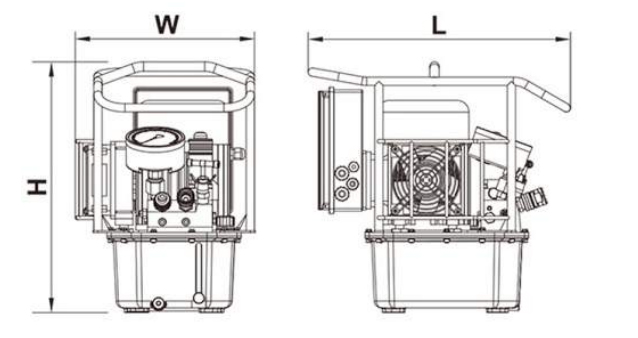

| LxWxH(mm) | 445x304x304x426 | 461x304x426 |
