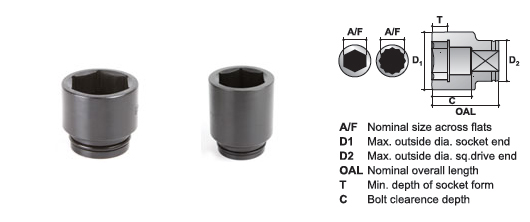

Metric #5 Spline

A/F mm	MODEL NO.	D1 mm	D2 mm	T mm	C mm	OAL mm
19 20 21	S-95M19 S-95M20 S-95M21	48.0 48.0 48.0	56.0 56.0 56.0	16.0 16.0 16.0	35.0 35.0 35.0	68.0 68.0 68.0
22 23 24	S-95M22 S-95M23 S-95M24	48.0 48.0 48.0	56.0 56.0 56.0	16.0 16.0 16.0	35.0 35.0 35.0	68.0 68.0 68.0
25 26 27	S-95M25 S-95M26 S-95M27	50.0 50.0 52.0	56.0 56.0 56.0	18.0 18.0 20.0	37.0 37.0 39.0	70.0 70.0 72.0
28 29 30	S-95M28 S-95M29 S-95M30	52.0 53.0 53.5	56.0 56.0 56.0	20.0 22.0 22.0	39.0 41.0 41.0	72.0 74.0 74.0
31 32 33	S-95M31 S-95M32 S-95M33	54.0 54.0 58.0	56.0 56.0 56.0	22.0 22.0 22.0	41.0 41.0 41.0	74.0 74.0 74.0
34 35 36	S-95M34 S-95M35 S-95M36	58.0 59.8 64.0	56.0 56.0 56.0	22.0 25.0 25.0	41.0 44.0 44.0	74.0 77.0 77.0
37 38 39	S-95M37 S-95M38 S-95M39	63.0 63.5 64.0	56.0 56.0 56.0	25.0 25.0 25.0	44.0 44.0 44.0	77.0 77.0 77.0
40 41 42	S-95M40 S-95M41 S-95M42	64.0 68.0 68.0	56.0 56.0 56.0	25.0 28.0 28.0	44.0 47.0 47.0	77.0 80.0 80.0
43 44 45	S-95M43 S-95M44 S-95M45	68.0 73.0 73.0	56.0 56.0 56.0	28.0 28.0 28.0	47.0 49.0 49.0	80.0 82.0 82.0
46 47 48	S-95M46 S-95M47 S-95M48	73.0 73.0 77.0	56.0 56.0 56.0	28.0 28.0 28.0	49.0 49.0 49.0	82.0 82.0 82.0
49 50 51	S-95M49 S-95M50 S-95M51	77.3 78.0 78.0	56.0 56.0 56.0	28.0 28.0 30.0	51.0 51.0 53.0	84.0 84.0 86.0
52 54 55	S-95M52 S-95M54 S-95M55	82.0 82.0 86.0	56.0 56.0 56.0	30.0 30.0 34.0	53.0 53.0 59.0	86.0 86.0 92.0
56 57 58	S-95M56 S-95M57 S-95M58	86.0 88.0 88.0	56.0 86.0 86.0	34.0 34.0 34.0	59.0 59.0 59.0	92.0 92.0 92.0
59 60 61	S-95M59 S-95M60 S-95M61	88.0 88.0 92.3	86.0 86.0 86.0	34.0 36.0 36.0	59.0 61.0 61.0	92.0 94.0 94.0
62 65 67	S-95M62 S-95M65 S-95M67	93.5 97.3 99.8	86.0 86.0 86.0	34.0 38.0 38.0	59.0 63.0 63.0	92.0 96.0 96.0
70 73 75	S-95M70 S-95M73 S-95M75	104.0 107.0 107.0	86.0 86.0 86.0	40.0 40.0 42.0	65.0 67.0 69.0	98.0 100.0 102.0
76 80	S-95M76 S-95M80	111.0 116.0	86.0 86.0	42.0 42.0	69.0 69.0	102.0 102.0
