Cleaning Accessories for Tube Cleaner


BRUSHES

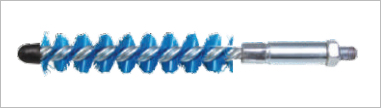

NYLON BRUSHES
Used for removing soft deposits in straight non-ferrous tubes (copper, brass, plastic, etc).

BRASS BRUSHES
Used for removing soft and light scale deposits in straight, non-ferrous tubes.

Stainless Steel Brush
Used for removing soft and light scale deposits in straight ferrous tubes. (carbon steel, stainless steel, etc).

• Brush should be equal to or 1/16" (1.6mm) smaller than tube I.D.
• 9/16" - 1" (14.3 - 25.4mm) brushes can be used for both clockwise and counterclockwise rotation.


cc
Nylon Brush
Stainless Steel

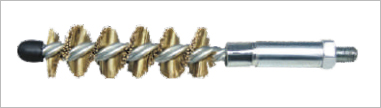

Brass Brush
Threading
Coupling
INCH
MM
1/4
6.4
SSB-N-204
SSB-SS-204
SSB-B-204
8 - 32F
P-1 (8 - 32M x 8 - 32M)
5/16
7.9
SSB-N-205
SSB-SS-205
SSB-B-205
8 - 32F
P-1 (8 - 32M x 8 - 32M)
3/8
9.5
SSB-N-206
SSB-SS-206
SSB-B-206
12 - 24F
P-2 (8 - 32M x 12 - 24M)
7/16
11.1
SSB-N-207
SSB-SS-207
SSB-B-207
1/4 - 28M
-
½
12.7
SSB-N-208
SSB-SS-208
SSB-B-208
1/4 - 28M
-
9/16
14.3
SSB-N-209
SSB-SS-209
SSB-B-209
1/4 - 28M
-
5/8
15.9
SSB-N-210
SSB-SS-210
SSB-B-210
1/4 - 28M
-
11/16
17.5
SSB-N-211
SSB-SS-211
SSB-B-211
1/4 - 28M
-
3/4
19.1
SSB-N-212
SSB-SS-212
SSB-B-212
1/4 - 28M
-
13/16
20.6
SSB-N-213
SSB-SS-213
SSB-B-213
1/4 - 28M
-
7/8
22.2
SSB-N-214
SSB-SS-214
SSB-B-214
1/4 - 28M
-
15/16
23.8
SSB-N-215
SSB-SS-215
SSB-B-215
1/4 - 28M
-
1
25.4
SSB-N-216
SSB-SS-216
SSB-B-216
1/4 - 28M
-



DRILL TIP DOUBLE DIAMETER BRUSHES

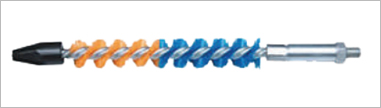

Drill Tip Double Diameter Nylon Brush


Drill Tip Double Diameter Nylon Brush


These brushes are used to clean internally enhanced tubes. The drill tip of brushes cleans through hard scale before the brush cleaning action takes over. The large diameter of this brush cleans into the grooves of the tubes and the small diameter into the lands of the tube's rifling.


Tube I.D.
Drill Tip Nylon Brush
Drill Tip Brass Brush
INCH
MM
5/8
15.9
DTBN-625
DTBB-625


SPIN-GRIT BRUSHES



These brushed used for removing soft and light scale deposits in straight, ferrous and non-ferrous tubes.The abrasive impregnated nylon bristles of this brush clean and polish tubes in one step. Unlike regular spiral brushes SpinGrit is designed to be oversized in the tube so the bristle lay over, putting the abrasive in contact with the tube wall. Order brush to correspond with tube I.D.


Tube I.D.

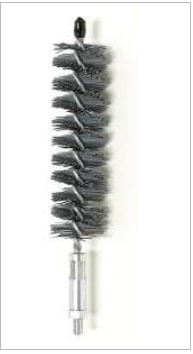

Spin-Grit Brushes
INCH
MM
1/4-3/8
6.4-9.5
BSGB-050
7/16-9/16
11.1-14.3
BSGB-075
5/8-11/16
15.9-17.5
BSGB-100
3/4-1
19.1-25.4
BSGB-125

CLEANING ACCESSORIES

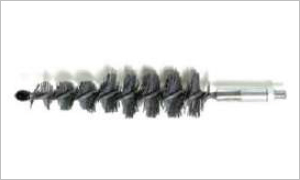

POWER SPIN-GRIT BRUSHES

These brush are used for removing soft and light scale deposits in straight, ferrous and non-ferrous internally enhanced tubes. The small diameter end of each of each brush cleans into the grooves of the tube's rifling with the ends of the brush filaments. The large diameter end of the brush cleans the lands of the tube’s rifling. as well as any prime surface, with the sides of the brush filaments. Order brush to correspond to tube I.D.


Tube I.D.
Power Spin-Grit Brushes
INCH
MM
½
12.7
BPSGB-050
5/8 15.9 BPSGB-062
3/4 19.1 BPSGB-075
1 25.4 BPSGB-100

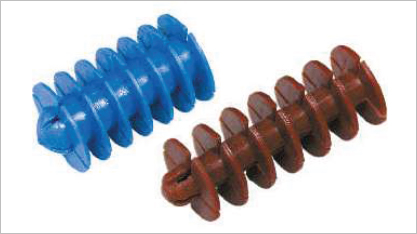

COLOR CODED SHOOT THRU SCRUBBERS

Tube Scrubers by Model & Color

In most cases Hard Tube Scrubbers are recommended for removing light to medium deposits in condensers order.


Tube I.D.
Scrubber
O.D. (INCH)
Model
Color
Type
INCH
MM
0.495-0.541
12.57-13.74
0.560
BTS-560-S
Yellow
Soft
0.527-0.555
13.39-14.10
0.560
BTS-560
Yellow
Hard
0.570-0.620
14.50-15.75
0.630
BTS-630-S
Brown
Soft
0.590-0.630
15.00-16.00
0.630
BTS-630
Brown
Hard
0.620-0.675
15.75-17.15
0.695
BTS-695-S
Red
Soft
0.652-0.694
16.56-17.63
0.695
BTS-695
Red
Hard
0.660-0.730
16.76-18.54
0.750
BTS-750-S
Purple
Soft
0.710-0.750
18.03-19.05
0.750
BTS-750
Purple
Hard
0.730-0.800
18.54-20.32
0.825
BTS-825-S
White
Soft
0.777-0.819
19.74-20.80
0.825
BTS-825
White
Hard
0.780-0.850
19.81-21.60
0.870
BTS-870-S
Green
Soft
0.825-0.870
20.96-22.10
0.870
BTS-870
Green
Hard
0.870-0.944
22.10-24.00
0.960
BTS-960-S
Blue
Soft
0.886-0.950
22.50-24.13
0.960
BTS-960-M
Blue
Medium
0.902-0.956
22.91-24.28
0.960
BTS-960
Blue
Hard
1.000-1.085
25.40-27.56
1.100
BTS-1100-S
Black
Soft
1.027-1.106
26.09-28.09
1.100
BTS-1100
Black
Hard

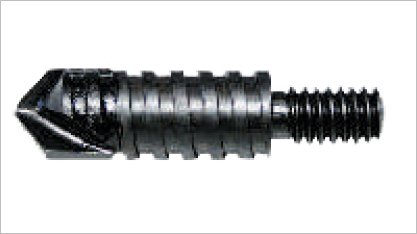

CARBIDE DRILL for Plugged Tubes/Pipes

CARBIDE DRILL are used for cleaning straight tubes plugged solidly with deposits.


Tube I.D.
Carbide Drill
INCH
MM
1/4
6.4
BCB-025
3/8
9.5
BCB-037
7/16
11.1
BCB-043
½
12.7
BCB-050
9/16
14.3
BCB-056
5/8
15.9
BCB-062
11/16
17.5
BCB-068

Note : All drill run 10% oversize {e.g. CB-062 drill is .6875" (17.5mm) O.D.}



FLEX-HONE ABRASIVE TOOLS

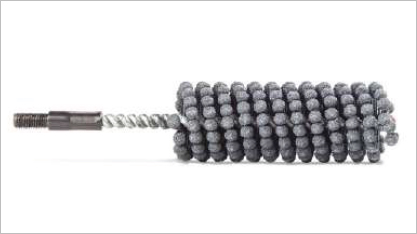

FLEX-HOSE ABRASIVE TOOLS are light pressure, soft application honing devices for straight tubes. They consist of 180 grit silicon carbide abrasive globules (stones) bonded to high density nylon filaments. They are flexible, self-compensating for wear. Their unbreakable stones are formulated to provide for a long lasting, consistent finish. Order tool to correspond to tube I.D.


Tube I.D.

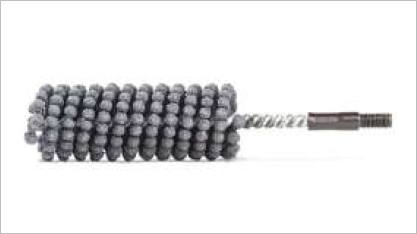

Flex-Hone Abrasive Tools
INCH
MM
1/4
6.4
BFHT-025
5/16
7.9
BFHT-031
3/8
9.5
BFHT-037
7/16
11.1
BFHT-043
½
12.7
BFHT-050
9/16
14.3
BFHT-056
5/8
15.9
BFHT-062
11/16
17.5
BFHT-068
3/4
19.1
BFHT-075
7/8
22.2
BFHT-087
1
25.4
BFHT-100

Note : Flex-Hone Abrasive Tools are normally used with a water flush for maximum life.


U-TUBE TOOL

These tools have either a cup brush, wheel brush or grinding tip attached to a 20"(508.0mm) piece of flexible shaft. They are designed to negotiate the bends of a U-tube from each side to clean the U-portion from both sides.

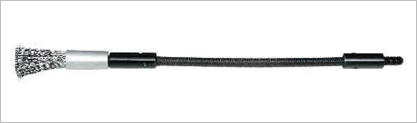

CUP BRUSH TOOLS - Brass or Stainless Steel

Cup Brush Tool

Tube I.D.
Cup Brush Tools
INCH
MM
½-3/4
12.7-19.1
BCS-075B
½-3/4
12.7-19.1
BCS-075S

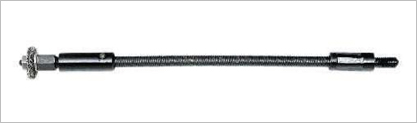

Wheel Brush Tool

Tube I.D.
Wheel Brush Tools
INCH
MM
½-3/4
12.7-19.1
BCW-075B
13/16-1
20.6-25.4
BCW-100B
½-3/4
12.7-19.1
BCW-075S
13/16-1
20.6-25.4
BCW-100S

Note : U-Tube tool is also available with Cobalt Grinding Tip.


BRUSHES

NYLON BRUSHES
Recommended for removing soft deposits (mud, algae, etc.) In straight, non-ferrous tubes. (Copper, brass, plastic, etc.) Order brush to correspond to tube I.D.

BRASS BRUSHES
Recommended for removing soft and light scale deposits In straight, non-ferrous tubes. Order brush to correspond to tube I.D.

Stainless Steel Brush
Recommended for removing soft soft and light scale deposits In straight, non-ferrous tubes. (Carbon steel, stainless steel, etc.) Order brush to correspond to tube I.D.


Brush O.D.
Nylon Brush
Brass Brush
Stainless Steel
INCH
MM
1.1/4
31.7
SSB-N-012
SSB-N-012
SSB-N-012
1.1/2
38.1
SSB-N-015
SSB-N-015
SSB-N-015
1.3/4
44.5
SSB-N-017
SSB-N-017
SSB-N-017
2
51.0
SSB-N-020
SSB-N-020
SSB-N-020
2.1/4
57.1
SSB-N-022
SSB-N-022
SSB-N-022
2.1/2
63.5
SSB-N-025
SSB-N-025
SSB-N-025
2.3/4
70.0
SSB-N-027
SSB-N-027
SSB-N-027
3
76.2
SSB-N-030
SSB-N-030
SSB-N-030
3.1/4
82.6
SSB-N-032
SSB-N-032
SSB-N-032
3.1/2
89.0
SSB-N-035
SSB-N-035
SSB-N-035
3.3/4
95.2
SSB-N-037
SSB-N-037
SSB-N-037
4
101.6
SSB-N-040
SSB-N-040
SSB-N-040

CLEANING ACCESSORIES

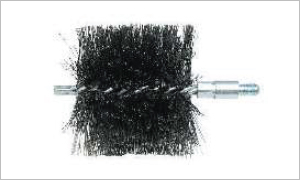

CARBON STEEL BRUSHES

Recommended for removing soft and light scale deposits in straight, ferrous tubes. Order brush to correspond to tube I.D.

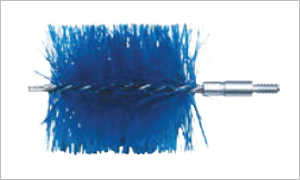

PLASTIC BRUSHES

Recommended for removing soft deposits in straight, ferrous and non-ferrous tubes. Order brush to correspond to tube I.D.


Brush O.D.
Carbon Brush
Plastic Brush
INCH
MM
5
127.0
CS - 050
P - 050
6
152.4
CS - 060
P - 060
7
178.0
CS - 070
P - 070
8
203.2
CS - 080
P - 080
9
228.6
CS - 090
P - 090
10
254.0
CS - 100
P - 100
11
279.4
CS - 110
P - 110
12
305.0
CS - 120
P - 120
13
330.2
CS - 130
P - 130
14
355.6
CS - 140
P - 140

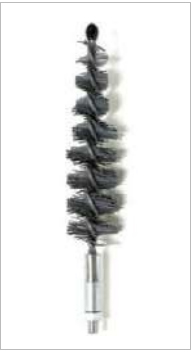

POWER SPIN - GRIT BRUSHES

POWER SPIN-GRIT BRUSHES Recommended for removing soft and light deposits in straight, ferrous and non-ferrous internally enhanced tubes. The small diameter end of each brush cleans into the grooves of the tube’s rifling with the ends of the brush filaments. The large diameter end of the brush cleans the lands of the tube’s rifling, as well as any prime surfaces, with the sides of the brush filaments. Order brush to correspond to the I.D.

PSGB-100 Power Spin-Grit Single Spiral Brush for tubes 1" (25.4mm) I.D.
PSGB-125 Power Spin-Grit Single Spiral Brush for tubes 1.1/4" (31.7mm) I.D.
Note : Brushes over 1" O.D. Require #TCB-C Coupling to Connect to NFSC-705, & NFSC-706 shafts (over couplings supplied with each brush order.)


WHEEL BRUSH ASSEMBLIES To order Wheel Brush Assemblies refer to the table below listing the types of tubes to be cleaned straight or curved.

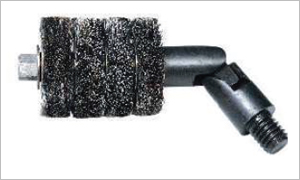

STRAIGHT TUBE WHEEL BRUSH ASSEMBLIES

Recommended for removing soft and light scale deposits (rust, soot, algae, etc.) In straight tubes. Each assembly consists of four stainless steel wire wheel brushes attached to a universal joint. Brushes should be 1/8" - 1/4" (3.2-6.4mm) smaller than tube I.D. Replacement brush elements are available as shown in the table below.


Curved Tube I.D. Wheel Brush Assembly Actual Brush O.D. Replacement Brushes (2 req.) Replacement Universal Joint Replacement Retainer Bolt
INCH MM INCH MM
1.1/8-1.1/4 28.6-31.7 WBS-100 1 25.4 WBR-100 CUJ-001 SWB-001
1.3/8-1.1/2 36.0-38.1 WBS-125 1.1/4 31.7 WBR-125 CUJ-001 SWB-001
1.5/8-1.3/4 41.3-44.5 WBS-150 1.1/2 38.1 WBR-150 CUJ-001 SWB-001
1.7/8-2 47.6-51.0 WBS-175 1.3/4 44.5 WBR-175 CUJ-002 SWB-002
2.1/8-2.1/4 54.0-57.1 WBS-200 2 51.0 WBR-200 CUJ-002 SWB-002
2.3/8-2.1/2 60.3-63.5 WBS-225 2.1/4 57.1 WBR-225 CUJ-002 SWB-002
2.5/8-2.3/4 66.7-70.0 WBS-250 2.1/2 63.5 WBR-250 CUJ-002 SWB-002
2.7/8-3 73.0-76.2 WBS-275 2.3/4 70.0 WBR-275 CUJ-002 SWB-002
3.1/8-3.1/4 79.4-82.6 WBS-300 3 76.2 WBR-300 CUJ-002 SWB-002

Note : For larger sizes consult factory.

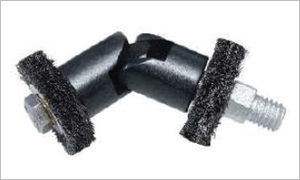

CURVED TUBE WHEEL BRUSH ASSEMBLIES

Recommended for removing soft and light scale deposits in curved tubes. Each assembly consists of a single stainless steel wire wheel brush attached to each end of a universal joint. Brushes should be 1/4" - 3/8"(6.4-9.5mm) smaller than tube I.D. Replacement brush elements are available as shown in the table below.


Curved Tube I.D.
Wheel Brush Assembly
Actual Brush O.D.
Replacement Brushes (two req.)
Replacement Universal Joint
Replacement Retainer Bolt
INCH
MM
INCH
MM
1.1/4-1.3/8
31.7-35.0
WBC-100*
1
25.4
WBR-100
CUJ-003*
CWB-001
1.1/2-1.5/8
38.1-41.3
WBC-125*
1.1/4
31.7
WBR-125
CUJ-003*
CWB-001
1.3/4-1.7/8
44.5-47.6
WBC-150*
1.1/2
38.1
WBR-150
CUJ-003*
CWB-001
2-2.1/8
51.0-54.0
WBC-175
1.3/4
44.5
WBR-175
CUJ-002
CWB-002
2.1/4-2.3/8
57.1-60.3
WBC-200
2
51.0
WBR-200
CUJ-002
CWB-002
2.1/2-2.5/8
63.5-66.7
WBC-225
2.1/4
57.1
WBR-225
CUJ-002
CWB-002
2.3/4-2.7/8
70.0-73.0
WBC-250
2.1/2
63.5
WBR-250
CUJ-002
CWB-002
3-3.1/8
76.2-79.4
WBC-275
2.3/4
70.0
WBR-275
CUJ-002
CWB-002
3.1/4-3.1/2
82.6-89.0
WBC-300
3
76.2
WBR-300
CUJ-002
CWB-002

Note : For larger sizes consult factory.
Note : BPTC-706 Coupling required to connect to BPFS-720 and BPFS-721 & BPFS-821 flexible shafts.

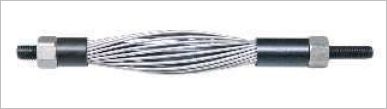

BUFFING TOOLS

Buffing Tool

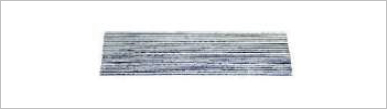

Replacement Blades

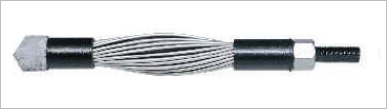

Buffing Tool with Drill Tip


BUFFING TOOLS for Tubes/Pipes 1"-3" (25.4-76.2mm) I.D Stainless Steel Wire Buffing Tool are used for light to medium scale deposits of for finishing tubes previously "roughed out" with other cleaning tools. They can be used in both ferrous and non-ferrous tubes. Buffing tool are normally used in straight tubes but will go through very large radius bends.

BPTC-223 Adjustable Buffing Tools for tubes 1"-3" (25.4-76.2mm ) I.D.
BPTC-223DT Adjustable Buffing Tools for tubes 1"-3" (25.4-76.2mm ) with drill up
BPTC-224 Replacement Blades for BPTC-223.



CARBIDE DRILLS

CARBIDE DRILLS for Plugged Tubes/Pipes Carbide Drills are used for cleaning straight tubes plugged solidity with scale or deposit.


Tube I.D.
Carbide Drill
INCH
MM
3/4
19.1
BCB-075
7/8
22.2
BCB-088
1
25.4
BCB-100

Note : All drills run 10% oversize [ e.g. CB-075 Drills is 0.825" (21.0mm) O.D.]


FLEX-HONE ABRASIVE TOOLS

FLEX-HONE ABRASIVE TOOLS for Tubes/Pipes 1.1/4" (31.7mm) I.D. and UP Flex-Hone Abrasive Tool are light pressure, soft application honing devices for straight tubes. They consist of 180 grit silicon carbide abrasive globules (stones) bonded to high density nylon filaments.

They are flexible, self-contering, self-aligning and self compensating for wear. Their unbreakable stones are formulated to provided for a long lasting, consistent finish. Order tool to correspond to tube I.D.

Tube
I.D.
Flex-Hone Abrasive Tools
INCH
MM
1.1/4
31.7
FHT-125
1.1/2
38.1
FHT-150
1.3/4
44.5
FHT-175
2
51.0
FHT-200
2.1/4
57.1
FHT-225
2.1/2
63.5
FHT-250
2.3/4
70.0
FHT-275
3
76.2
FHT-300

Note : For larger sizes consult factory. Flex-Hone Abrasive Tools are used with water flush for maximum life.


CONE CUTTER ASSEMBLIES

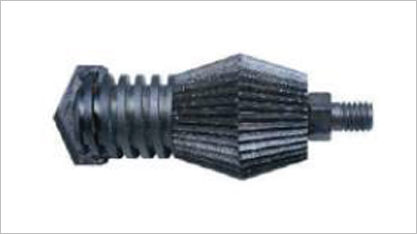

Cone Cutter Assemblies are used for removing scale from curved and straight tubes. Assemblies are slightly smaller then tube I.D. Scale is cut at the smaller tapered end finished at the larger end. The rotation of the tool ensures a through cleaning. In water tube boiler, cone cutters are the most effective cleaning tools for all conditions. To order refer to the tables below.


SINGLE AND DOUBLE CONE ASSEMBLIES

Assemblies consisting of one or two cone elements are used for cleaning straight tubes 1.1/8" - 2.5/16" (28.6-58.7mm) I.D. And curved tubes 11/4" - 2.3/8" (31.7-60.3mm) I.D.


Straight Tube I.D. Curved Tube I.D. Complete Single
Cone Assembly
Complete Double
Cone Assembly
Cone Max Replacement Cone Only Universal
Joint
Single Cone
Bolt
Double Cone Bolt
INCH MM INCH MM
INCH
MM
1.1/8-1.1/4 28.6-31.7 1.1/4-1.3/8 31.7-35.0 BSCA-100 BDCA-100
1
25.4 RCO-100 CUJ-001 CRB-001 DCB-001
1.5/16-1.3/8 33.3-35.0 1.1/2-1.5/8 38.1-41.3 BSCA-112 BDCA-112
1.1/8
28.6 RCO-112 CUJ-002 CRB-002 DCB-002
1.7/16-1.1/2 36.5-38.1 1.3/4-1.7/8 44.5-47.6 BSCA-125 BDCA-125
1.1/4
31.7 RCO-125 CUJ-002 CRB-002 DCB-002
1.9/16-1.3/4 39.7-44.5 2-2.1/8 51.0-54.0 BSCA-150 BDCA-150
1.1/2
38.1 RCO-150 CUJ-002 CRB-002 DCB-002
1.13/16-2 46.0-51.0 2.1/4-2.3/8 57.1-60.3 BSCA-175 BDCA-175
1.3/4
44.5 RCO-175 CUJ-002 CRB-002 DCB-002
2.1/16-2.5/16 52.4-58.7 BSCA-200 BDCA-200
2
51.0 RCO-200 CUJ-002 CRB-002 DCB-002


Replacement Cone

Single Cone Assembly

Double Cone Assembly

Disc Cone Assembly


DISC CONE ASSEMBLIES

Assemblies consisting of three cones are used for cleaning straight tubes 2.3/8"-3.3/4" (60.3-95.2mm) I.D. and curved tubes 2.1/2”-4” (63.5-101.6mm) I.D.


Straight Tube I.D.
Curved Tube I.D.
Complete Disc
Cone Assembly
Replacement Cone
Only (three req.)
Disc Only
(less cones)
Universal
Joint
Cone Retainer Bolt (three req.)
INCH
MM
INCH
MM
2.3/8-2.13/16
60.3-71.4
2.1/2-3.1/16
63.5-77.8
BDC-101
PCO-100
PCD-101
CUJ-002
CRB-001
2.7/8-3.5/16
73.0-84.1
3.1/8-3.5/8
79.4-92.1
BDC-102
PCO-100
PCD-102
CUJ-002
CRB-001
3.3/8-3.3/4
85.7-95.2
3.11/16-4
93.7-101.6
BDC-103
PCO-112
PCD-102
CUJ-002
CRB-002



FLEX HUB TOOLS

Flex Hub Assembly

Replacement Blades

Universal Joint

Carbide Drill


Straight Tube I.D.
Curved Tube I.D.
Flex Hub
Assembly
INCH
MM
INCH
MM
7/8-11/2
22.2-38.1
1-1.3/4
25.4-44.5
BPTC-226
1.1/2-2
38.1-51.0
1.3/4-2.1/2
44.5-63.5
BPTC-231
1.3/4-3
44.5-76.2
2.1/2-3
63.5-76.2
BPTC-227

BPTC-223 Replacement Blades for BPTC-226 (set of three).
BPTC-231A Replacement Blades for BPTC-231 (set of three).
BPTC-227A Replacement Blades for BPTC-227 (set of three).
CB-088 Drill to be attached to BPTC-227 Flex Hub Assembly for use when tubes are severely clogged.
CB-075 Drill to be attached to BPTC-231 Flex Hub Assembly for use when tubes are severely clogged.
CUJ-002 Universal Joint for use with above Flex Hub Assemblies when minimum tube bend radius is less than 5x tube I.S. (Consult factory).


DRILL CONE ASSEMBLIES

DRILL CONE ASSEMBLIES FOR Plugged Tubes/Pipes 1”-1.7/8” (25.4-47.6mm) I.D.
Drill/ Cone Assemblies are recommended for cleaning straight tubes plugged solidly with deposits.
Order assembly to corresponded to Tube I.D. All drill run 10% oversize.


Tube I.D.
Drill Cone
Assembly
INCH
MM
1
25.4
DC-100
1.1/8
28.6
DC-112
1.1/4-1.3/8
31.7-35.0
DC-125
1.1/2-1.5/8
38.1-41.3
DC-150
1.3/4-1.7/8
44.5-47.6
DC-175



ROTATING CUTTING WHEEL TOOLS

ROTATING CUTTING WHEEL TOOLS for Tubes/Pipes 1.1/2" - 3.15/16" (38.1 - 100.0mm) I.D. Rotating Cutting Wheel Tools incorporate self-centering, centrifugally activated serrated cutting wheels for removing light to heavy deposits in straight or curved tubes, typically in boilers.


Tube
I.D.
Cutting Wheel Tools
INCH
MM
1.1/2-1.13/16
38.1-46.0
BRCW-150
1.7/8-2.3/16
47.6-55.6
BRCW-187
2.1/4-3.1/8
57.1-79.4
BRCW-225
3.3/16-3.15/16
81.0-100.0
BRCW-312

CW-062 Replacement Cutting Wheel for BRCW-150 or BRTC-187.
CW-093 Replacement Cutting Wheel for BRCW-225 or BRTC-312.


FLARE CONE TOOLS


Rigid Arm Flare Cone Tool



Flexible Arm Flare Cone Tool

FLARE CONE TOOLS for Tubes/Pipes 1.3/4"- 6.1/2" (44.5-165.1mm) I.D. (Rigid Arm) Rigid Arm Flare Cone Tools incorporate centrifugal force activated, cones for removing light to heavy deposits in straight tubes.


Tube I.D.
Flare Cone Tools
INCH
MM
1.3/4-4
44.5-101.6
BFCT-300
4-6.1/2
101.6-165.1
BFCT-301

BRCO-100 Replacement Cone (three required).
BCRB-001 Replacement Cone Retainer Bolt (three required).

For Tubes/Pipes 4"-12" (101.6-305.0mm) I.D. (Flexible Arm)
The Flexible Arm Flare Cone Tool incorporates centrifugal force activated cones for removing light tot
heavy scale deposits in straight or curved tubes. Use typically in vertical tubes.

BFCT-600 Flexible Flare Cone Tool 4"-12" (101.6-305.0mm) I.D
BRCO-001 Replacement Cone (six required).
BCRB-001 Replacement Cone Retainer Bolt (six required).


FLARE BRUSHES


Thee Strand Flare Brush



Five Strand Flare Brush

FLARE BRUSHES for Tubes/Pipes 1"-8" (25.4-203.2mm) I.D. Flare Brushes incorporated centrifugal force activated wire cables with cobalt tips for light descaling and polishing of straight or curved tubes..


Tube I.D.
Flare Brushes
INCH
MM
1-2
25.4-51.0
BFBT-301
2-4
51.0-101.6
BFBT-501
4-8 101.6-203.2 BFBT-502

NOTE : We also manufacture Universal Nylon Rod Tool.
